Adtran Total Access E&M/TO Expansion Module Item # 143919

 |

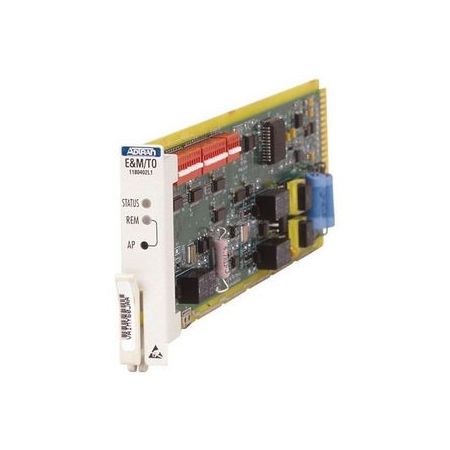

Adtran Total Access E&M/TO Expansion Module
$ 293 .99 / each $293.99
In Stock
Free delivery
Estimated delivery 20-30 business days

    Description

    The ADTRAN Total Access Ear and Mouth /Transmit Only Dataport (E&M/TO) is an access module that plugs into a single channel slot of a Total Access 1500 platform. It provides an interface between a platform PCM interface and a Voice Frequency (Voice Frequency) transmission facility with E&M DC signaling supervision. The unit is multifunctional and can be provisioned to operate in two-wire E&M, four-wire E&M, two-wire TO, and four-wire TO. The primary applications for the E&M/TO channel unit are for providing PBX foreign exchange at the customer premises, or tandem central office applications. The channel unit is intended only for interface with intro-building wiring, and it is not equipped with outside plane metallic interface lightning and power cross protection. The E&M/TO card can also be deployed in a Total Access 750 or Total Access 850.The E&M/TO features a four-wire 600W or two-wire 600W + 2.15 mf VF interface with DC isolation. Provisioning is accomplished through on board switches and craft interfaces, and a network digital loop back can be performed via site manager or craft interface. A dial pulse distortion correction option is available. It is compatible with Types I, II, III, or V E&M signaling. The E&M/TO is CLASS compatible, and also meets UL, NEBS, and PUB43801 requirements. ADTRAN's new family of Carrier Class multi-service access platforms, Total Access 750/850/1500, offer unmatched versatility for narrowband ser-vice offerings in the smallest form factors available. These platforms integrate the functionality of many different carrier products into a single chassis. They feature high density, easy provisioning, flexible deployment, and low cost-per-port. Deployed in either the central office or remote terminal, the Total Access 750/850/1500 provide a fast, simple, and effective means of increasing POTS capacity, deploying special services, and deploying DSL services.

    Back To Top

    Product Details

    Item # 143919
    Manufacturer # 961828
    Compatibility Total Access 750 chassis; Total Access 1500 Chassis
    Application/Usage Data Networking
    weight 1 lb
    brand name Adtran
    Interfaces/Ports Details 1 x E&M
    height 3 in
    Additional Information 600W (four-wire) or 600W + 2.15 mf (two-wire) VF interface with DC isolation; Provisioning by onboard switches or craft interfaces; Dial pulse distortion correction option; Up to 9.0 dBm transmit and receive attenuation adjustable in 0.1 dB increments; Digital loopback to the network,via site manager or craft interface; Meets the requirements of NEBS Level 3 and UL 1950
    width 0.7 in
    Product Line Total Access
    depth 9.7 in
    Product Name Total Access E&M/TO Expansion Module
    manufacturer Adtran
    warranty length 10-year limited
    model name 1180402L1
